| ขั้นต่ำ: | 1 |
| ราคา: | To be quoted |
| การบรรจุแบบมาตรฐาน: | กล่องกระดาษนิรภัยหรือกล่องไม้อัด |
| ระยะเวลาการจัดส่ง: | 25 วันทำการ |
| วิธีการจ่ายเงิน: | T/T |
| ความสามารถในการจําหน่าย: | 3 ชุดต่อเดือน |

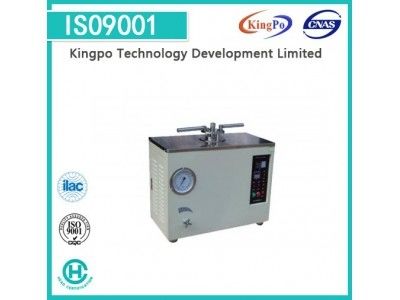

220V Oxygen Air Bomb Aging Test Chamber With Intelligent Control GB/T2951.12-2008
Product information:
This aging tester conforms to the standard requirements of GB/T2951.12-2008 and GB/T5013－2008 as well as VDE. It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber ( plastic,artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.
Technical parameters:
1, Power voltage:220V(AC)±10%
2, Maximum working pressure: 2.5MP
3, Secure blow -up pressure: 2.7～3.3MP
4, the self-control temperature range: indoor temperature 0～200℃
5, Cabinet size:560×420×670mm
6, Cubage:4000mm3
7, Heater power:2.4KW
8, Temperature alarm:0～200℃ adjustable
9, Temperature deviation:±0.5℃
10, Temperature control:digital display
11, Temperature control:intelligent control
12, Material of jar:inside is stainless steel and outside electrostatic spraying steel plate
13, Dimension of jar:diameter123× high 337mm
|
|
| ขั้นต่ำ: | 1 |
| ราคา: | To be quoted |
| การบรรจุแบบมาตรฐาน: | กล่องกระดาษนิรภัยหรือกล่องไม้อัด |
| ระยะเวลาการจัดส่ง: | 25 วันทำการ |
| วิธีการจ่ายเงิน: | T/T |
| ความสามารถในการจําหน่าย: | 3 ชุดต่อเดือน |
220V Oxygen Air Bomb Aging Test Chamber With Intelligent Control GB/T2951.12-2008
Product information:
This aging tester conforms to the standard requirements of GB/T2951.12-2008 and GB/T5013－2008 as well as VDE. It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber ( plastic,artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.
Technical parameters:
1, Power voltage:220V(AC)±10%
2, Maximum working pressure: 2.5MP
3, Secure blow -up pressure: 2.7～3.3MP
4, the self-control temperature range: indoor temperature 0～200℃
5, Cabinet size:560×420×670mm
6, Cubage:4000mm3
7, Heater power:2.4KW
8, Temperature alarm:0～200℃ adjustable
9, Temperature deviation:±0.5℃
10, Temperature control:digital display
11, Temperature control:intelligent control
12, Material of jar:inside is stainless steel and outside electrostatic spraying steel plate
13, Dimension of jar:diameter123× high 337mm
