| ขั้นต่ำ: | 1 |
| ราคา: | To be quoted |
| การบรรจุแบบมาตรฐาน: | กล่องเครื่องมือพลาสติกอิ่มหรือแพคเกจไม้อัด |
| ระยะเวลาการจัดส่ง: | 35 วันทำการ |
| วิธีการจ่ายเงิน: | t/t |
| ความสามารถในการจําหน่าย: | 200 ต่อเดือน |

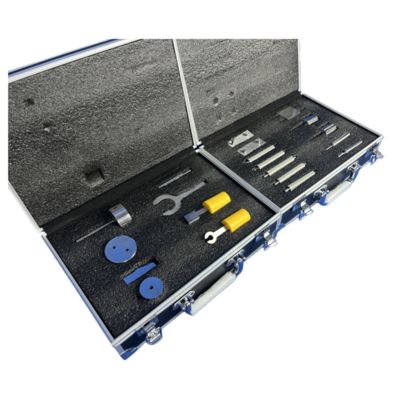

| No. | Items | Description | |
| 1 | C1A and C1B | CEE7-figure 1 10/16A 250V two-pole socket-outlets -Gauges c1 for size of entry holes for plug pins | |
| 2 | C2A and C2B | CEE7-figure 2 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact- Gauges c2 for minimum opening of contact tubes |
|
| 3 | C3 | CEE7-figure 3 10/16A 250V two-pole socket-outlets-Gauge c3 for acceptance of two-pole plugs | |
| 4 | C6A+B + 4pins | CEE7-figure 6 10/16A 250V two-pole fixed socket-outlets-Gauges c6 for fixing holes or slots | |
| 5 | C7A+B+C+D+E | CEE7-figure 7 10/16A 250V two-pole socket-outlets-Gauges c7 for distance to point of first contact | |
| 6 | C8 | CEE7-figure 8 10/16A 250V two-pole socket-outlets-Gauge c8 for wiring channel |
|
| 7 | C9B go and no go gauge | CEE7-figure 9 10/16A 250V two-pole socket-outlets with pin-type earthing-contact- Gauges c9 for pin diameter |
|
| 8 | C10A+B | CEE7-figure 10 10/16A 250Vtwo-pole plugs- Gauges c10 for pin spacing |
|
| 9 | C11A | 10/16A 250V two-pole socket-outlets and two-pole piugs with pin-type earthing-contact- Gauge c11 for maximum opening of contact tubes |
|
| 10 | C12 | CEE7-figure 12 10/16A 250V two-pole plugs with side earthing-contacts- Gauge c12 for interchangeability |
|
| 11 | CEE7-figure 13 | 2.5A 250V two-pole plugs for class ii appliances- Gauge for interchangeability |
|
| 12 | C19B | 10/16A 250V two-pole plugs-Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets |
วิดีโอ
|
|
| ขั้นต่ำ: | 1 |
| ราคา: | To be quoted |
| การบรรจุแบบมาตรฐาน: | กล่องเครื่องมือพลาสติกอิ่มหรือแพคเกจไม้อัด |
| ระยะเวลาการจัดส่ง: | 35 วันทำการ |
| วิธีการจ่ายเงิน: | t/t |
| ความสามารถในการจําหน่าย: | 200 ต่อเดือน |
| No. | Items | Description | |
| 1 | C1A and C1B | CEE7-figure 1 10/16A 250V two-pole socket-outlets -Gauges c1 for size of entry holes for plug pins | |
| 2 | C2A and C2B | CEE7-figure 2 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact- Gauges c2 for minimum opening of contact tubes |
|
| 3 | C3 | CEE7-figure 3 10/16A 250V two-pole socket-outlets-Gauge c3 for acceptance of two-pole plugs | |
| 4 | C6A+B + 4pins | CEE7-figure 6 10/16A 250V two-pole fixed socket-outlets-Gauges c6 for fixing holes or slots | |
| 5 | C7A+B+C+D+E | CEE7-figure 7 10/16A 250V two-pole socket-outlets-Gauges c7 for distance to point of first contact | |
| 6 | C8 | CEE7-figure 8 10/16A 250V two-pole socket-outlets-Gauge c8 for wiring channel |
|
| 7 | C9B go and no go gauge | CEE7-figure 9 10/16A 250V two-pole socket-outlets with pin-type earthing-contact- Gauges c9 for pin diameter |
|
| 8 | C10A+B | CEE7-figure 10 10/16A 250Vtwo-pole plugs- Gauges c10 for pin spacing |
|
| 9 | C11A | 10/16A 250V two-pole socket-outlets and two-pole piugs with pin-type earthing-contact- Gauge c11 for maximum opening of contact tubes |
|
| 10 | C12 | CEE7-figure 12 10/16A 250V two-pole plugs with side earthing-contacts- Gauge c12 for interchangeability |
|
| 11 | CEE7-figure 13 | 2.5A 250V two-pole plugs for class ii appliances- Gauge for interchangeability |
|
| 12 | C19B | 10/16A 250V two-pole plugs-Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets |
